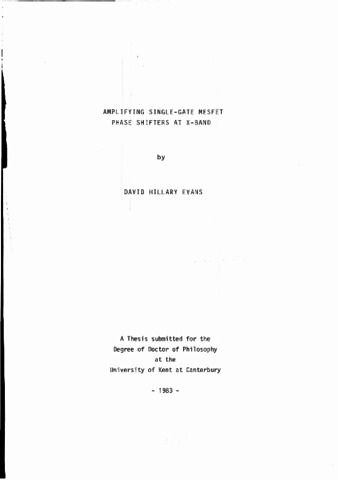

Amplifying single-gate mesfet phase shifters at x-band

Evans, David Hillary (1983) Amplifying single-gate mesfet phase shifters at x-band. Doctor of Philosophy (PhD) thesis, University of Kent. (doi:10.22024/UniKent/01.02.94330) (KAR id:94330)


The thesis will describe 0/180 degree digital switched-path phase shifters that exhibit insertion gains of approximately 3 dB at 9.5 GHz. The microwave switching and amplification in each phase shifter is performed with a pair of Plessey GAT4 single-gate MESFET devices. The basis for this microwave switch is a matched amplifier which when its device is pinched-off displays an insertion loss of about 17 dB down on the amplifier's peak gain of 6 dB. A characteristic feature of this switch is its large terminal mismatches when in its off state. Use has been made of these to recover part of the 3 dB division (or recombination) loss inherent in the type of switched path phase shifter used in this work. The paths that are being switched are the outputs of phase splitting networks and power dividers. A divider has been developed for use with these switches and utilises the broadband coupling properties of slotline to microstrip transitions. This phase shifter has a bandwidth of 1.4 GHz which is determined mainly by the network matching of the two devices. The phase error is less than 6 degrees in this bandwidth and phase transition times of less than 1 nS have been determined by spectrum analysis.

Item Type: Thesis (Doctor of Philosophy (PhD))
DOI/Identification number: 10.22024/UniKent/01.02.94330
Additional information: This thesis has been digitised by EThOS, the British Library digitisation service, for purposes of preservation and dissemination. It was uploaded to KAR on 25 April 2022 in order to hold its content and record within University of Kent systems. It is available Open Access using a Creative Commons Attribution, Non-commercial, No Derivatives ( licence so that the thesis and its author, can benefit from opportunities for increased readership and citation. This was done in line with University of Kent policies ( If you feel that your rights are compromised by open access to this thesis, or if you would like more information about its availability, please contact us at and we will seriously consider your claim under the terms of our Take-Down Policy (
Uncontrolled keywords: Components
Subjects: Q Science > QA Mathematics (inc Computing science) > QA 75 Electronic computers. Computer science
Divisions: Divisions > Division of Computing, Engineering and Mathematical Sciences > School of Engineering and Digital Arts
